AIM MXG 1.2 Dash Logger + GPS Module & Cable
SKU: AIM1.2-MXG-1.3m by AIM TechnologiesAim MXG 1.2
Aim MXG 1.2 is the new dash logger designed to acquire and display data coming from your engine ECU, the internal accelerometer, gyro, and from the GPS Module included in the kit. Analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules. The only difference between the two is the MXS is a compact 5″ display and Aim MXG 1.2 is a 7″ display, a better fit for wide cockpit installations.
Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
High Contrast 7″ TFT display
The Aim MXG 1.2 display features a high contrast 7″ TFT display, fully configurable by a dedicated software.
An ambient light sensor keeps the backlight at optimum brightness levels.

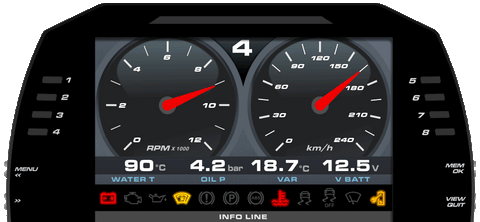

Flexible Alarms
Aim MXG 1.2 has Eight configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing one and the flashing frequency then choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
Aim MXG 1.2 features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required.
