AIM MXS 1.2 Dash Logger + GPS Module & Cable
SKU: AIM1.2-MXS-1.3m by AIM TechnologiesAim MXS 1.2
The Compact Colour TFT Dash Logger for Motorsports
MXS 1.2, the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5″ display has been specifically designed for installation in small cockpits.
MXS 1.2 is also available in its STRADA version
A dash logger for road use which is also available as an IVA approved kit.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

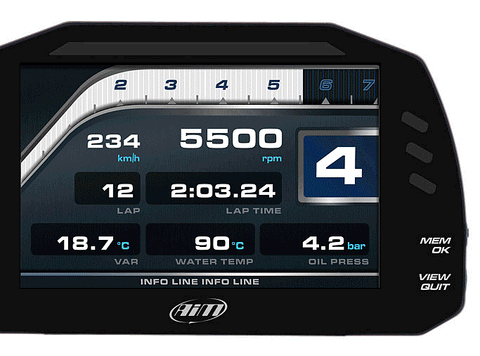

Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
High Contrast TFT Display
A high contrast TFT display identifies MXS 1.2 at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.
Flexible Alarms
MXS 1.2 features six configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing alarm along the flashing frequency. Choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
MXS 1.2 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required. Using the built-in CAN bus, you can add expansion modules to the Aim MXS to increment the performance and the data acquired.
