Aim MXS Strada 1.2
A wide range of data sources
Aim MXS Strada 1.2 is the the evolution of previous MXS Strada which is a 5″ color display with great visual impact. It is configurable to show lap times and all the info coming from the Engine Control Unit like analog/digital inputs, pre-defined math channels and optionally, the GPS08 Module.
Aim MXS Strada 1.2 is available in two versions:
Watch Your Data in Pre-Configured Pages
Aim MXS Strada 1.2 shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more.
Choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons.

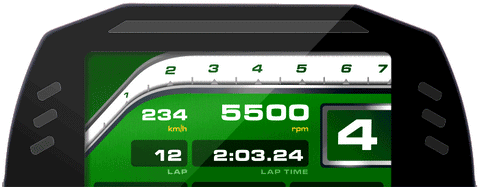

High Contrast TFT Display
The Aim MXS Strada shows with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more. Choose the custom pages you wish, including up to four additional fields
A wide library of page styles, defining which data to be shown, their end of scale and measured units. Swapping between pages is quite easy with the Aim MXS Strada using the pushbuttons provided.
Flexible Shift Lights and Alarms
The ten multi-colored RGB shift lights on the Aim MXS Strada may be customised to your liking to define the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs. Configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information. You choose conditions, colours and you select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.
Two Digital Outputs
The AimMXS Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU.
This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
